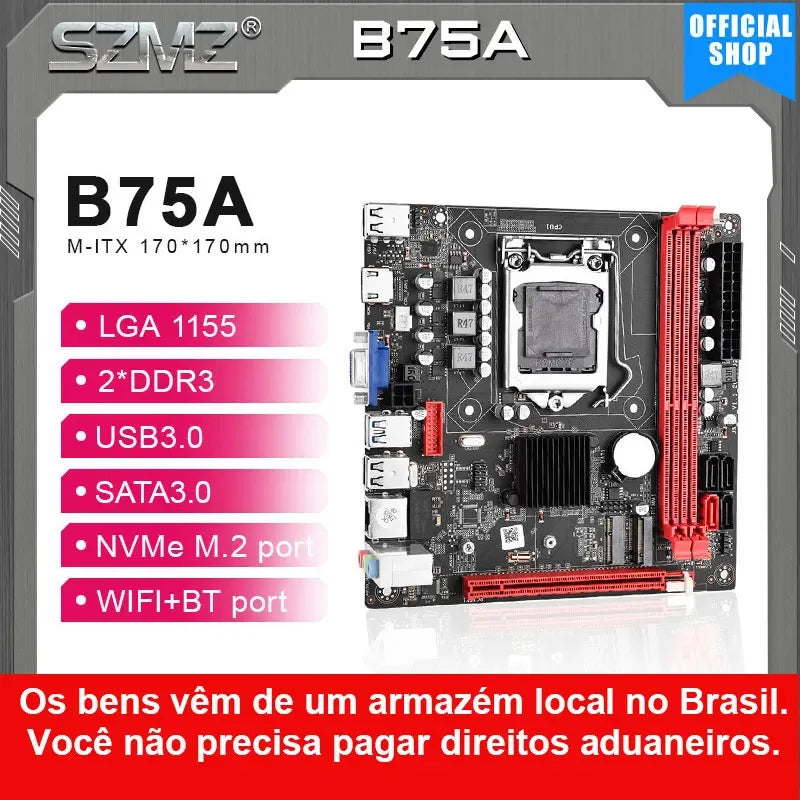

SZMZ B75 LGA 1155 Motherboard Placa Mae 1155 B75 Desktop DDR3 Motherboard

SZMZ B75 LGA 1155 Motherboard Placa Mae 1155 B75 Desktop DDR3 Motherboard

$39.99 USD
$50.05 USD $39.99 USD
Sale Sold out
Shipping calculated at checkout.
Ships From
Bundle

SPECIFICATIONS

Brand Name: SZMZ

Chipset: Intel B75

Onboard LAN: 1x RJ45

Maximum Ram Capacity: 16 GB

Processor compatibility: Intel Pentium

Processor compatibility: Intel Core i7

Processor compatibility: Intel Core i3

Processor compatibility: Intel Celeron

Processor compatibility: Intel Xeon E Series

Processor compatibility: Intel Core i5

With CPU: No

Support Memory Type: DDR3

Number of PCI: 1

Storage Interface Type: SATA 2

Storage Interface Type: SATA 3

Storage Interface Type: M.2 (NVMe)

Storage Interface Type: M.2(SATA)

Package: Yes

RAID Supported: no

Application: Desktop

Chipset Manufacturer: Intel

Back I/O Ports: 1x RJ45

PCI - E standards: PCI - E 3.0

Socket Type: LGA 1155

Hign-concerned Chemical: none

Special Function: none

Usage Scenario: Gaming

Usage Scenario: Audio & Video

Usage Scenario: Household

Usage Scenario: Office

Number Of Memory Slots: 2

Support USB Type: USB 2.0

Support USB Type: USB 3.0

Number of PCIe x 4: 0

Number of PCIe x 16: 1

Onboard Connectors & Header: 24-pin Main Power Connector

Memory channel: Double

Number of SATA Ports: 4

Audio Channels: 5.1

Launch Date: 2013

Quality Certification: ce

Form Factor: Mini-ITX

Supports M.2 SSD: 2280

Number of M.2: 2

Discover more motherboard kits shipped from local warehouses in Brazil through the link below. Enjoy duty-free treatment and fast delivery.
1: X99S-D4 motherboard + E5-2680V4 CPU + 2*8GB DDR4 RAM Kit
2: X99EL-MAX motherboard + E5-2673V3 CPU + 4*16GB DDR3 RAM Kit
3: X79 motherboard + E5-2670V2 CPU + 2*8GB DDR3 RAM Kit
4: H311M-K motherboard + core i3-8100 CPU + 2*8GB DDR4 PC RAM Kit
5: B85M-K motherboard + core i7-4790 CPU + 2*8GB DDR3 PC RAM Kit
6: B85M-I itx motherboard + core i5-4670 CPU + 2*8GB DDR3 PC RAM Kit
7: B75M-K motherboard + core i7-3770 CPU + 2*8GB DDR3 PC RAM Kit
8: B75A itx motherboard + core i5-3570 CPU + 2*8GB DDR3 PC RAM Kit



Motherboard Feature:

  • 8-Layer PCB , Stable and Cost-Effective .

  • Support 2*DDR3 PC Memory Dual Channels up to 16GB.

  • Support NVMe M.2 port .

  • Support M.2 KeyA/E WIFI port (support WIFI+Bluetooth) .

  • Onboard VGA , HDMI-compatible video output ports.

  • Support USB3.0 , SATA3.0 .

  • High compatibility for a higher experience.

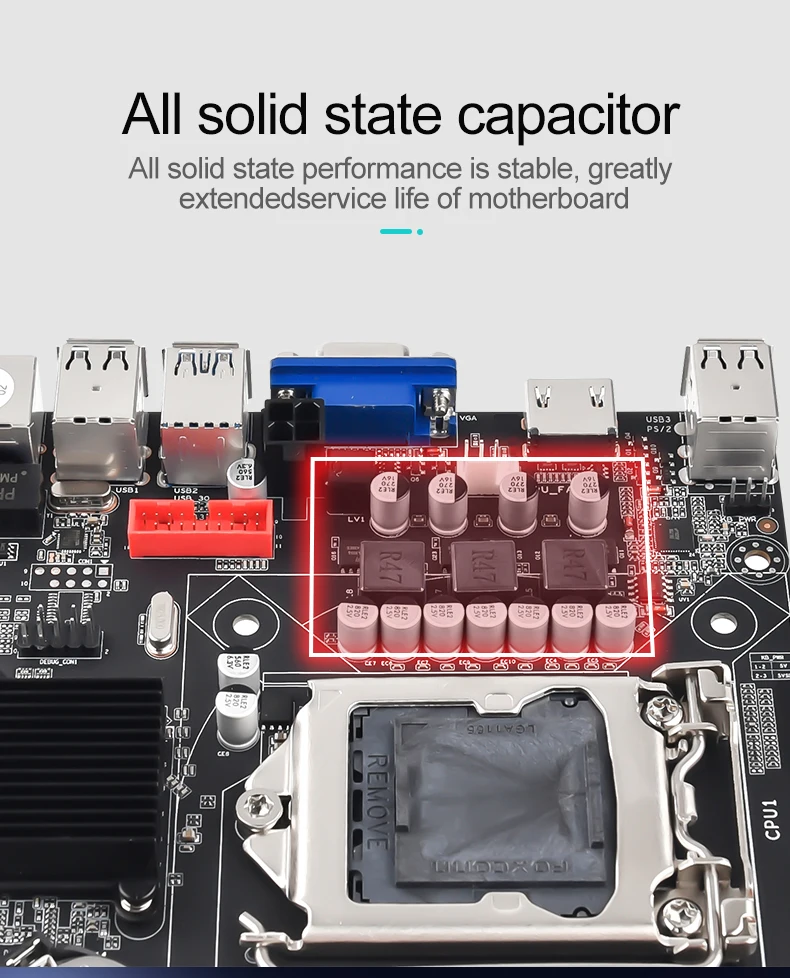

  • All solid capacitors, fine workmanship, professional stability.

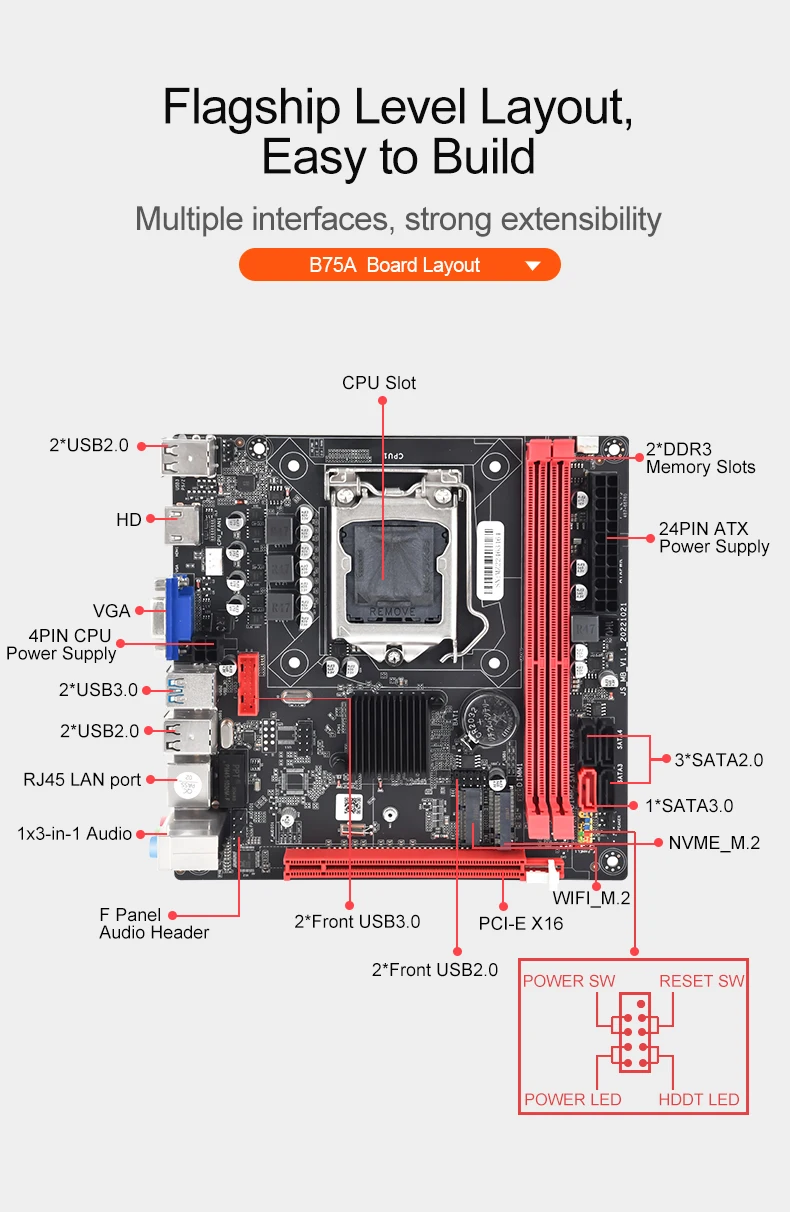

Motherboard Specification:

  • Model : SZMZ

  • Form Factor : M-ITX, 170mm x 170mm

  • Chipset : Intel 7 Series Chipsets

  • CPU socket : LGA 1155

  • Processor supported : support Pentium / Celeron / Core i3 i5 , 2nd generation and 3rd generation processors with socket type LGA1155

  • Memory socket : 2* DDR3 PC RAM 1066/1333/1600MHz

  • Max memory : Support Dual Channel Architecture up to 16GB

  • Graphic card slot : PCI-E x16

  • Storage : 1* SATA3.0 , 3* SATA2.0

  • USB Ports : 4* USB3.0 , 6* USB2.0

  • Expansion slots : 1*NVME M.2 (PCIEx4 2.0 speed) , 1*NGFF M.2 KeyA/E WIFI port (support WIFI+Bluetooth)

  • LAN : 100M Fast Ethernet

  • Audio : Realtek ALC662, 5.1 HD Audio .

  • PSU Solution : ATX 4Pin + ATX 24Pin

  • Accessories : 1 x I/O Shield ,1 x SATA cable
